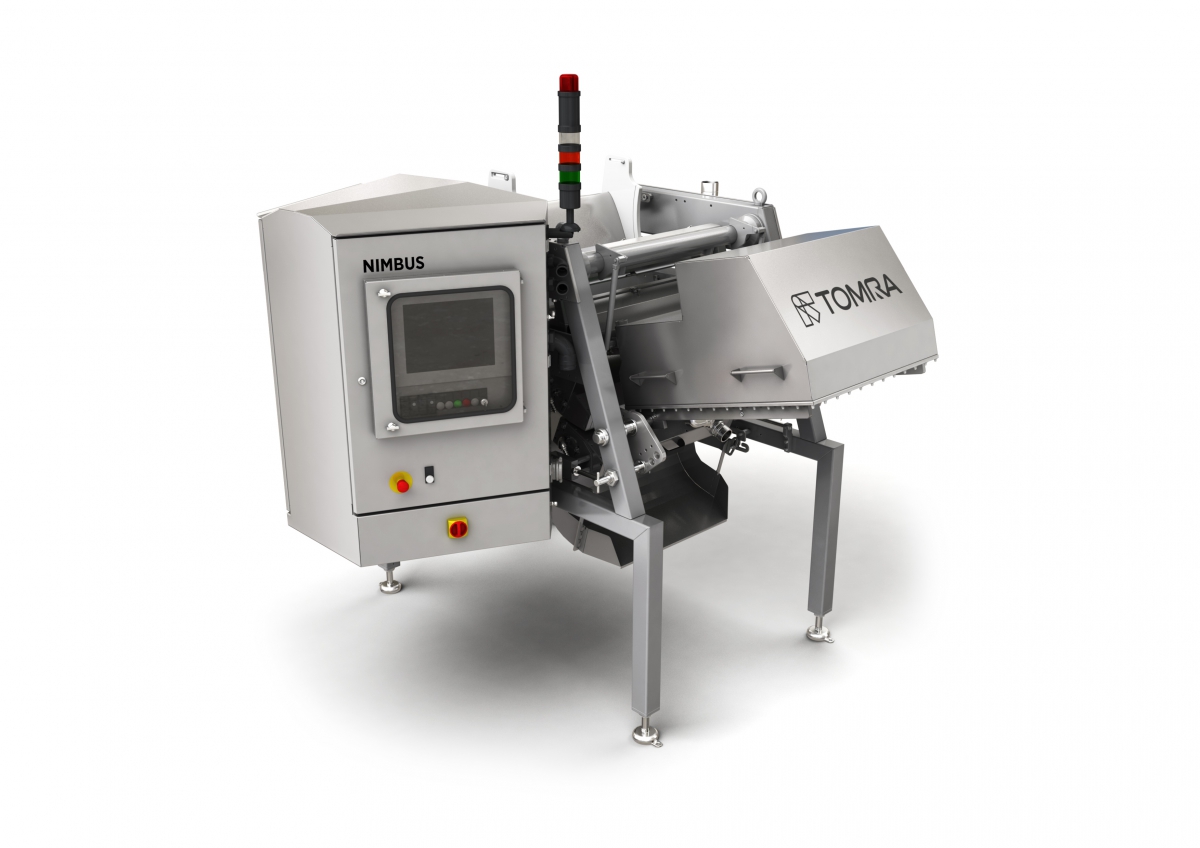

Optical sorter Nimbus
With a combination of various sorting technologies, the Nimbus free fall sorting machine is the answer to the continuously high requirements of the food industry and individual processors.
Charakteristika
Detailní popis
Operating principle:
It ensures safe and excellent food quality by removing any unwanted discoloration, foreign material, deformed products etc.
- Smart Sort module to assist operators, improving the contrast between good and defect product
- Ease of use with intuitive graphical user interface (GUI)
- Optimal detection with high resolution lasers and multiple cameras
Capacity: 2 – 12 tons per hour, depending on the product and type of machine
Features:
SENZOR TECHNOLOGY
The new generation of free-fall sorting solutions combines the efficiency of the laser detection together with the camera to sort discolorations and shape of products in free-fall. In addition to these conventional sorting methods, the Nimbus is able to sort based on biological characteristics, such as chlorophyll (Fluo TM), mycotoxins (Detox TM), water (SWIR) and can be equipped with a hyperspectral camera to identify the material’s unique fingerprint. The ejection system uses an optimal pitch for enhanced removal of defects. The Nimbus can be equipped with front sorting or a Rear Ejection System (RES) for greater flexibility, lower false reject and improved yield.
PRODUCT BENEFITS
- User friendly
- Low maintenance
- Upgradeable with camera technology
- Calibration-free
- High capacity
- Optimized sort
- Increased uptime, quality, throughput, yield
ADVANCED SORTING CRITERIA
The Nimbus can sort multiple food applications by the following sorting criteria:
- Chlorophyll
- Detailed size / geometry
- Detailed shape
- Subtle color
- Subtle defects
- Biological characteristics data
- Subtle blemishes
- Damage
- Advanced Foreign Material Detection
- Moisture content
- Mycotoxins
- Hyperspectral
Technická data
| TYPE | NIMBUS 640 | NIMBUS 1200 | NIMBUS 1600 |
| Capacity | 2 – 6 tons per hour | 4 – 12 tons per hour | N/A |
| Dimensions (LxWxH) | 3.500 x 2.200 x 2.450 mm | 4.200 x 2.660 x 2.450 mm | 5.550 x 3.050 x 2.450 mm |
| Infeed belt width | 2.200 mm | 2.200 mm | 2.400 mm |
| Air pressure input | 6 – 7 bar | 6 – 7 bar | 6 – 7 bar |
| Electrical consumption | 1 ph: 4 kVA + 3 ph: 2,5 kVA | 1 ph: 4 kVA + 3 ph: 2,5 kVA | 1 ph: 4 kVA + 3 ph: 2,5 kVA |
Aplikace
- Dried fruit – raisins, figs, prunes, dried cherries
- Rice, grains, seeds – sunflower, sesame seeds, coffee
- Vegetables – carrots, peas, frozen corn, dry beans, green beans, peppers, baby leaves
- Nuts – almonds, cashews, hazelnuts, peanuts, pecans, pistachios, walnuts, pine nuts, brazil nuts
- IQF vegetables and fruit – IQF blackberries, IQF broccoli, IQF mixed vegetables, IQF strawberries, IQF zucchini
- Fruit – Fresh blueberries, cranberries, fresh and frozen cherries and many more
- Meat – Bacon bits, IQF meat
