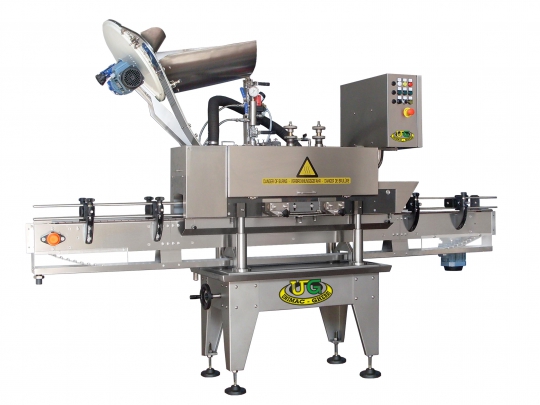

Automatic cap feeder GG700
Magnetic cap feeder mod. GG700 is installed on the capping machine. It suitable for the automatic feeding of caps to the capping machines.
Charakteristika
Detailní popis
Machine description:
Magnetic cap feeder mod. GG700 is installed on the capping machine. It suitable for the automatic feeding of caps to the capping machines.
The machine consists of:
- Stainless steel feed hopper with capacity 2500 Ø 38mm RTO caps
- Standard cap selector ejecting the overturned caps and returning them to the hopper
- Stainless steel chute adjustable for caps with diameters ranging from 27 to 89 mm
- Sensor controlling the machine start/stop if caps be missing
- Arm support made of treated aluminum
- Motor speed variator
Capacity: up to 100 caps/minute (6,000 caps/hour referred to RTO caps ø 38 mm).
Technická data
| Type | GG700 |
| Installed power | 0.37 kW |
| Dimensions | 1.000 x 950 x max. height 2.450 mm |
| Weight | 60 Kg |
This technical sheet gives an approximate description of the machine. The technical features and the machine configuration are to be confirmed at the time of order..
Aplikace
Caps that can be handled: Deep Twist-off, Regular and Medium Twist-Off, Pry-Off, Press-On and Pry-Twist.
The feeder can handle caps with: diameter from 27 to 89mm height from 5 to 18mm
