Tray denester

Detailní popis

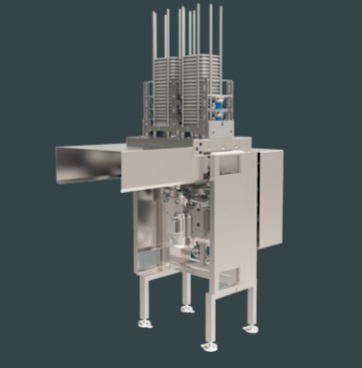

Machine description:

The tray denester for soft and hard trays is camshaft driven and includes a special head pressure relief system for tray stacks.

By means of a sucking disc the dispenser picks up trays one by one from a magazine placed above and them places them on conveyor placed underneath for subsequent processing steps. The sucking disc placed on pneumatic cylinder. The standard discharge height is 900 mm, but this is adjustable.

The dispenser has a magazine for 1, 2 or 4 lanes. The format set can, with only a few change parts and no heavy parts, be replaced by another format set for other tray dimensions.

Capacity: 60 pcs / min

Main features:

• Easy-to-change formats
• Easy to clean
• Control of dispensed containers
• Vacuum operation system

Option:

• Magazine conveyor

Technická data

Measures may vary, depending on application

.

Aplikace

Stackable plastic container with round or square dimensions max 175x185 mm.
